Description
A. The initial period of use is two weeks or 100-200 hours, which is the initial wear period. There may be a little metal wear particles during this period. Please be sure to clean the inside and replace with new lubricating oil;
B. For long-term use, replace the lubricating oil every six months – one year or 1000-2000 hours. Type of lubricating oil: The lubricating oil of this product adopts China Petroleum full-effect gear oil 90-120 degrees, low speed, light load conditions, it is recommended to use full-effect gear oil 90 degrees, heavy load, high temperature conditions, it is recommended to use full-effect gear oil 120 Spend.
Technical Parameters:

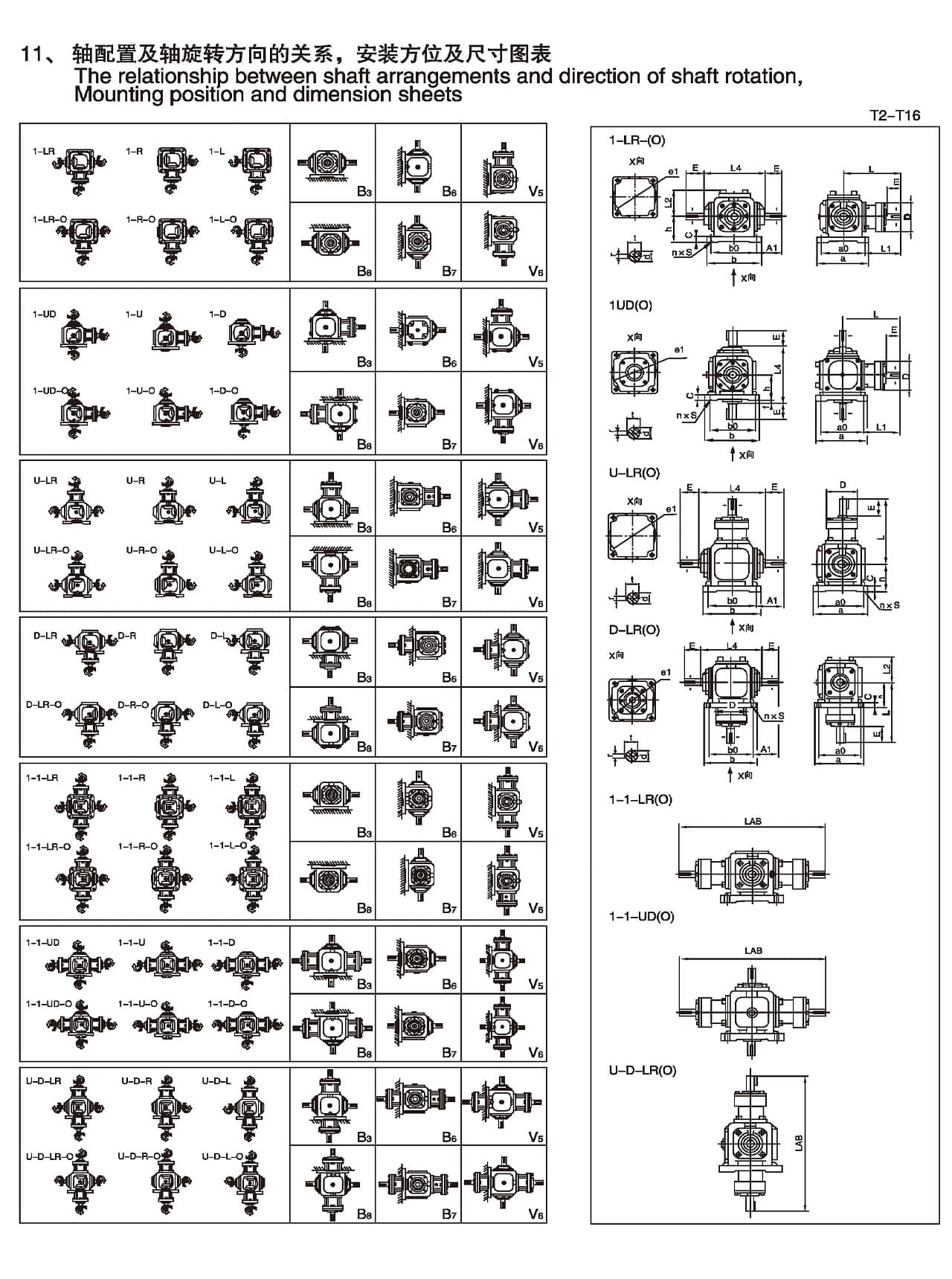

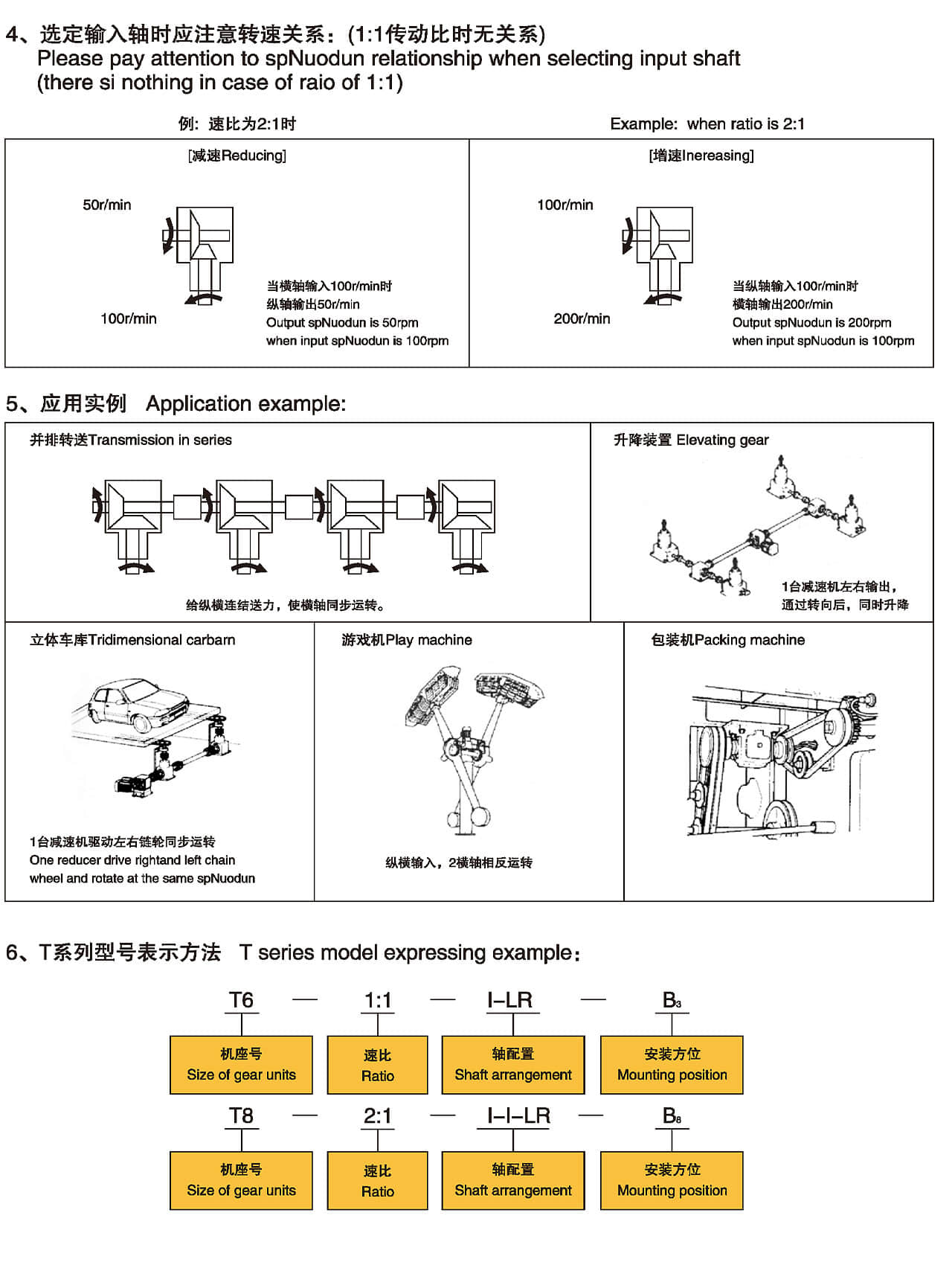

It can be equipped with single axis, double horizontal axis, single vertical axis and double vertical axis.
Speed ratio: 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1.

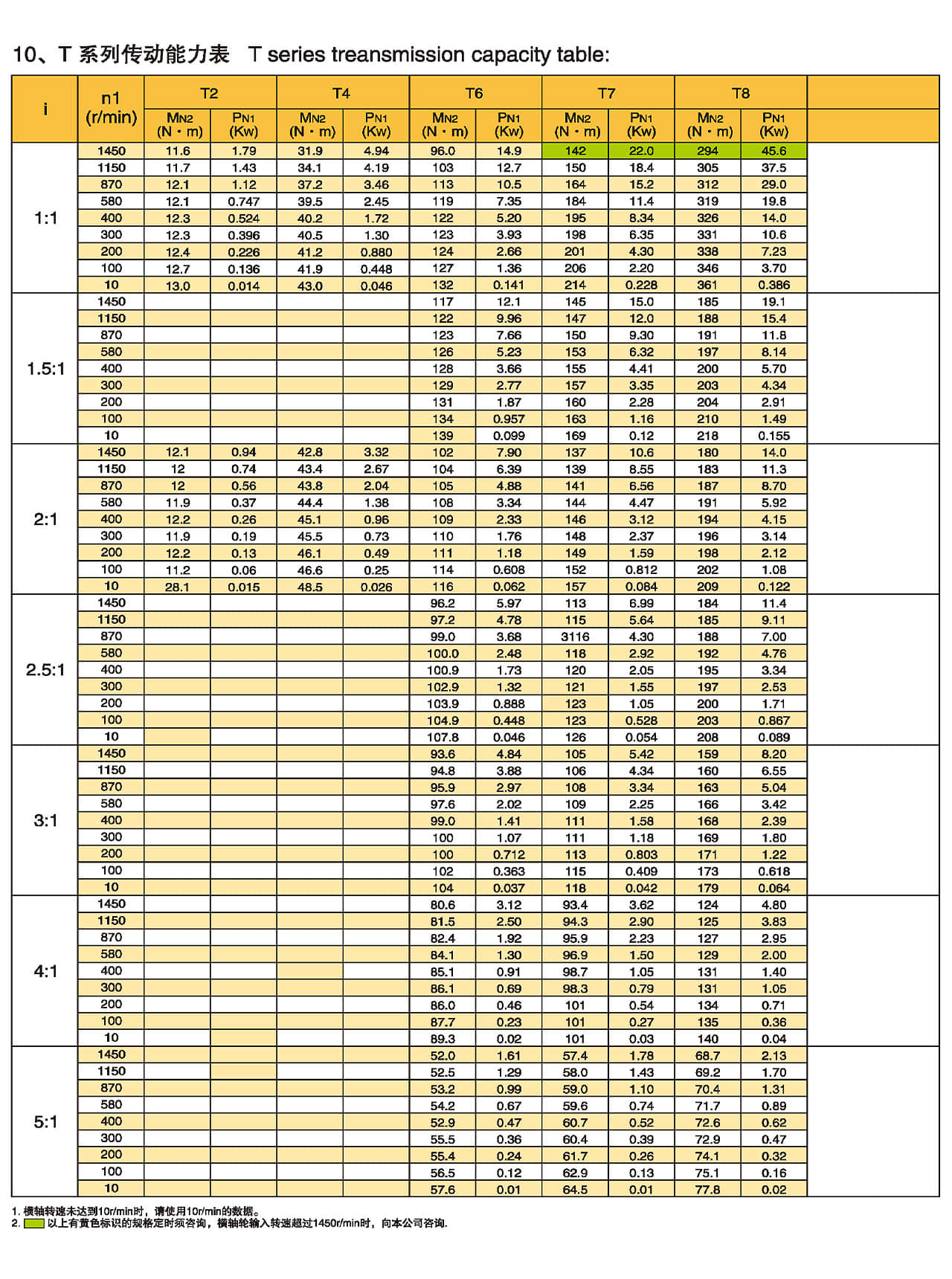

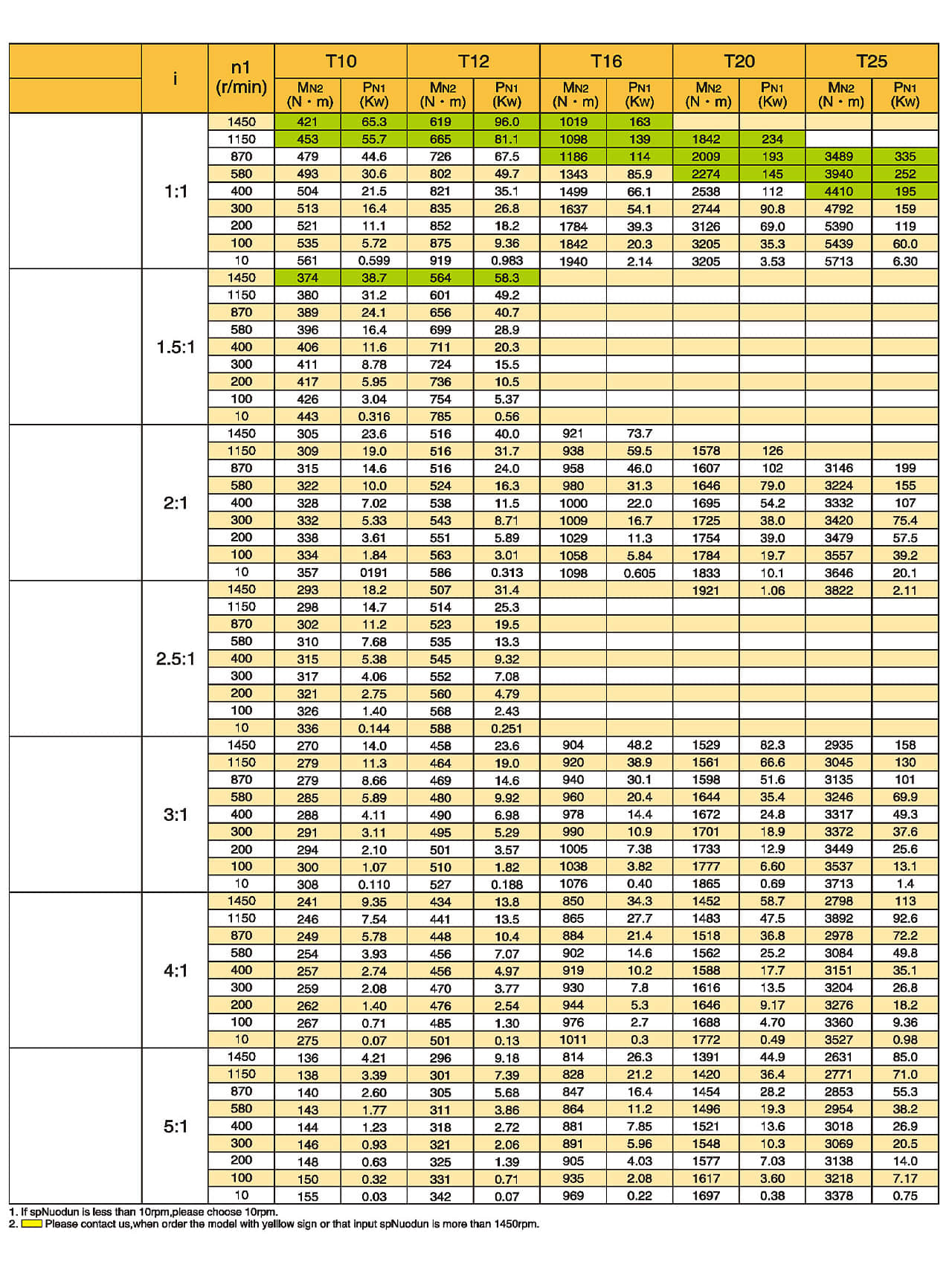

Technical Parameters:
1. Transmission ratio: 1-5;
2. Input power: 0.12-96 KW;
3. Allowable torque: ≤1000 N.m;
4. Structural form: single output shaft, double output shaft.
Features:
1. Standardization and variety;
2. All speed ratios are actual transmission ratios;
3. Shaft input, shaft output structure, single-axis, multi-axis output;
4. Compact structure, small space occupation, transmission efficiency can reach 94%-98%.
