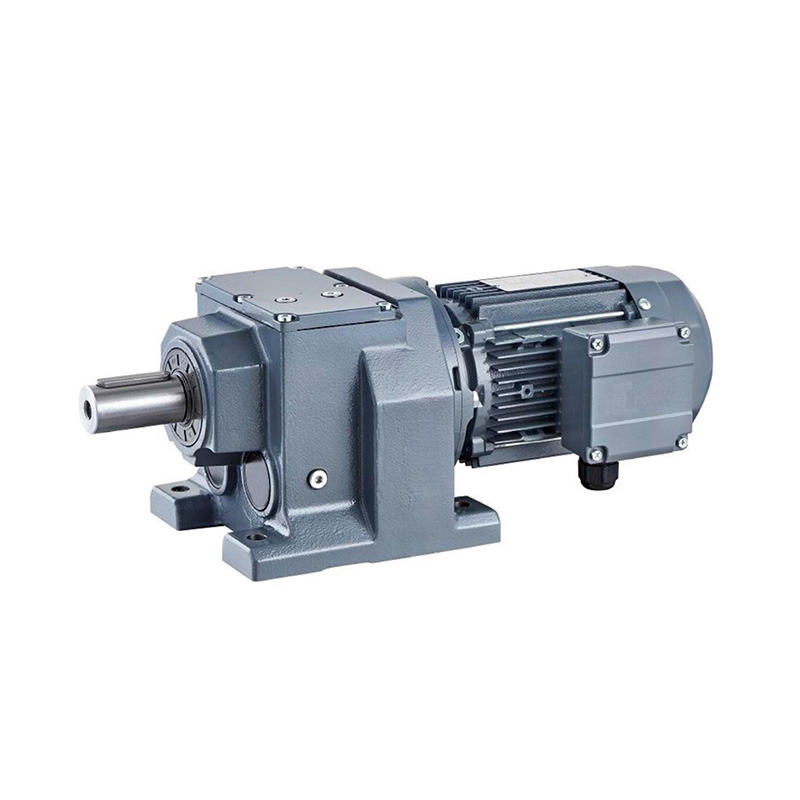

R Series Helical Gear Reducer

Brand: GELE
Model: R series
Introduction: compact structure, small size, stable operation, wide range of output speed selection, strong versatility, and efficiency up to 95%;
Technical Parameters:
Power: 0.12KW～160KW;
Torque: 1.4N·m～23200N·m;
Output speed: 0.06～1090r/min;

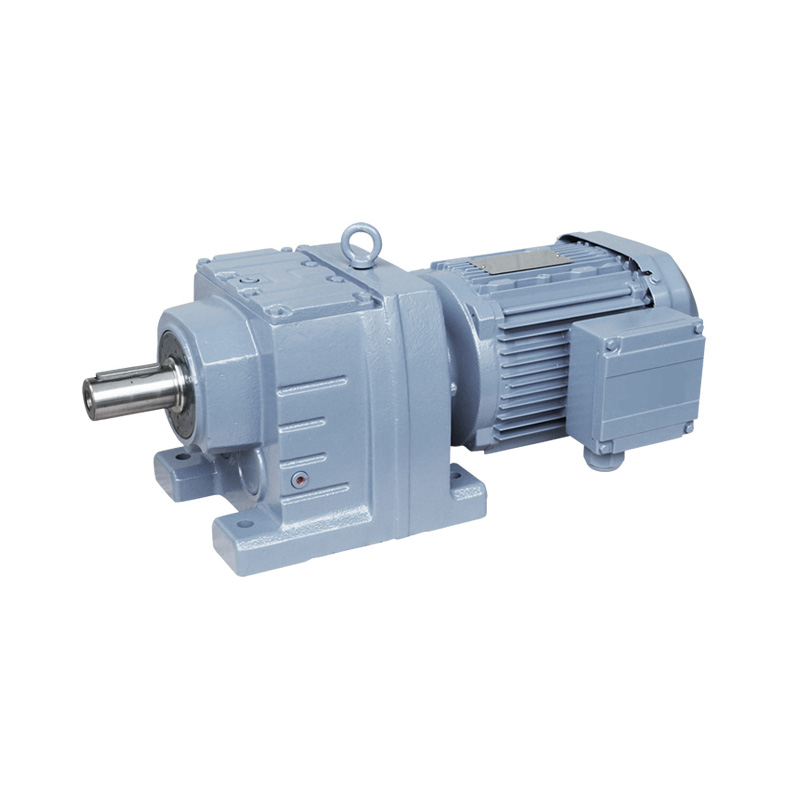

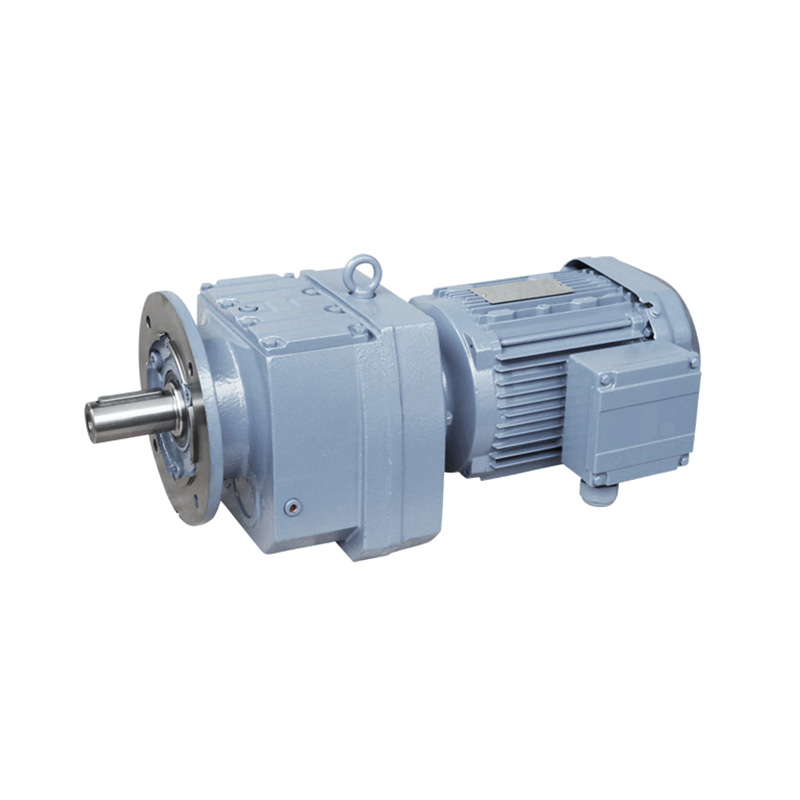

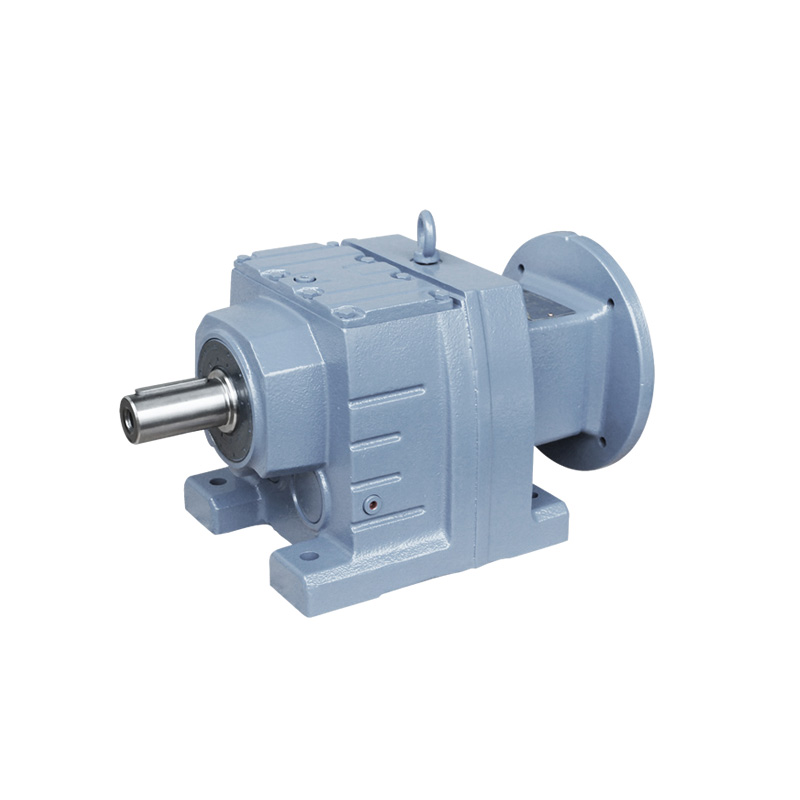

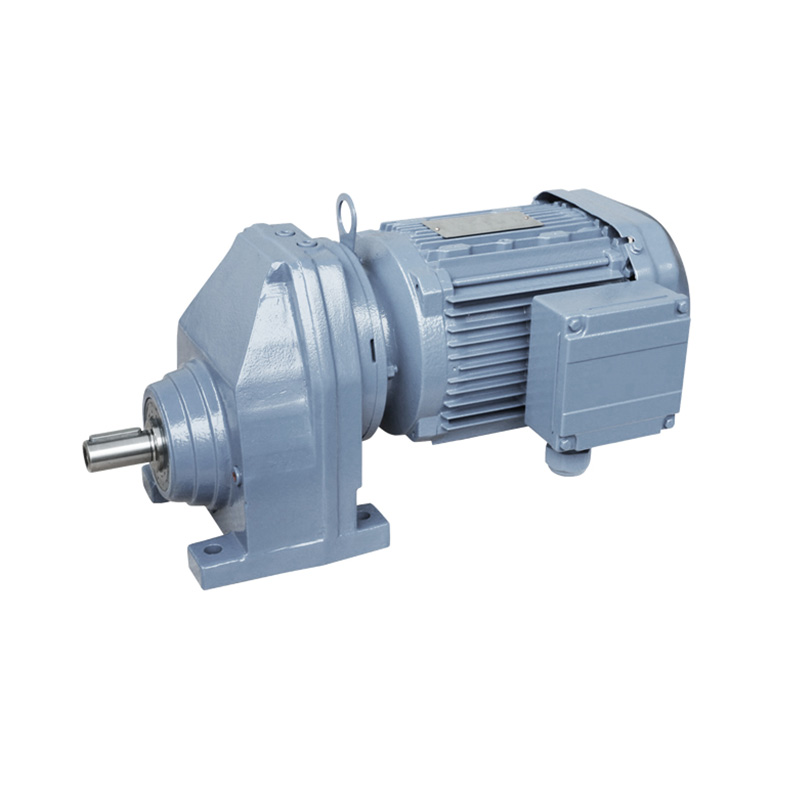

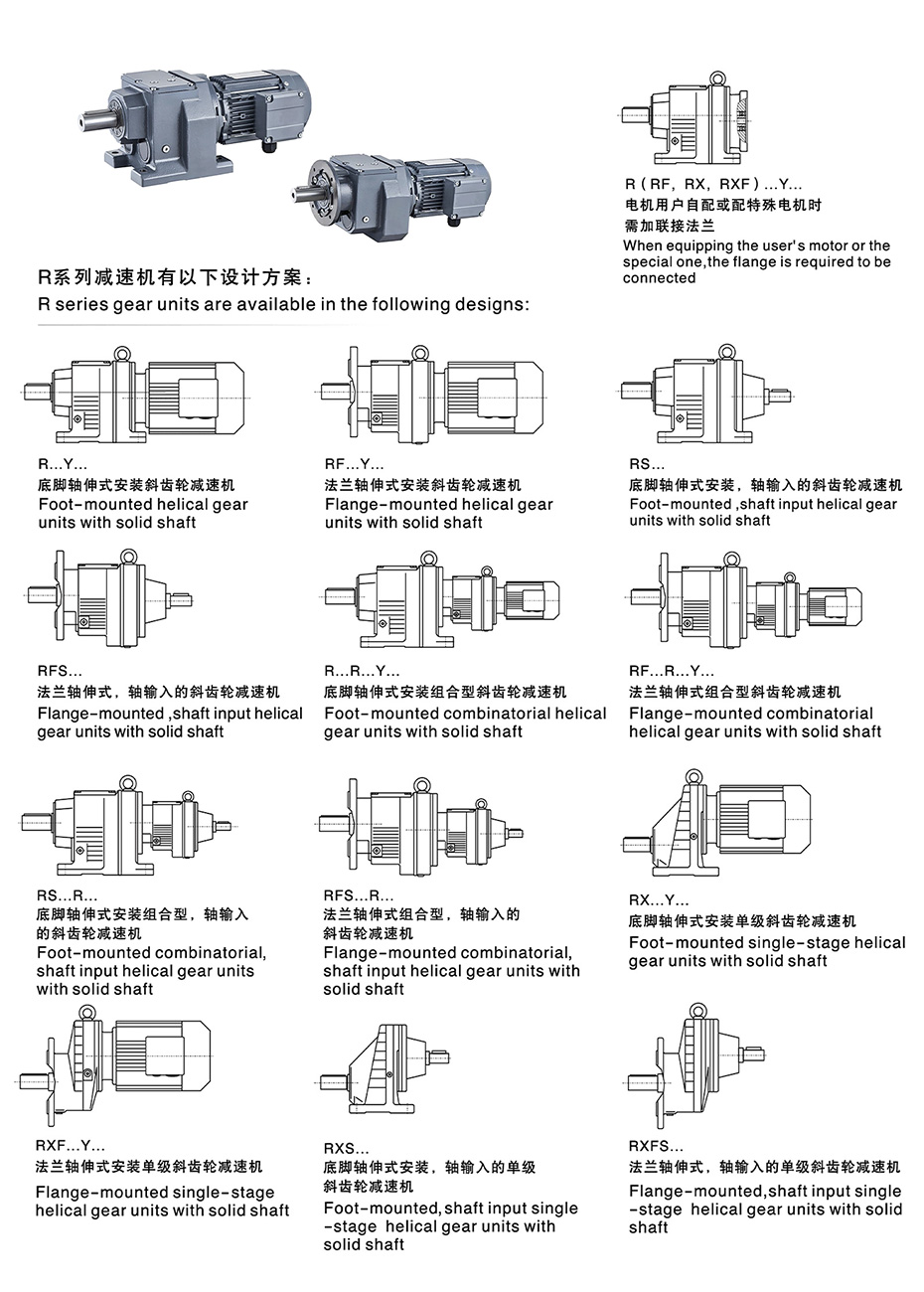

Structure: R: solid shaft; RF: flange mounting; R…F: foot flange mounting; RM: flange mounting with extended bearing housing; RX: single-stage foot mounting; RXF: single-stage flange mounting
